Metal Stencil Cleaner / Checker
0402 Chip mounting requires stencil condition status management SCI-MCC
- Easily detects solder particle residuals with high accuracy
- Garber data are not needed
- Track and trace stencil inspection
![](https://www.sawa-corp.co.jp/wp-content/uploads/2023/04/MCC2本体白抜き2-1024x594.png)

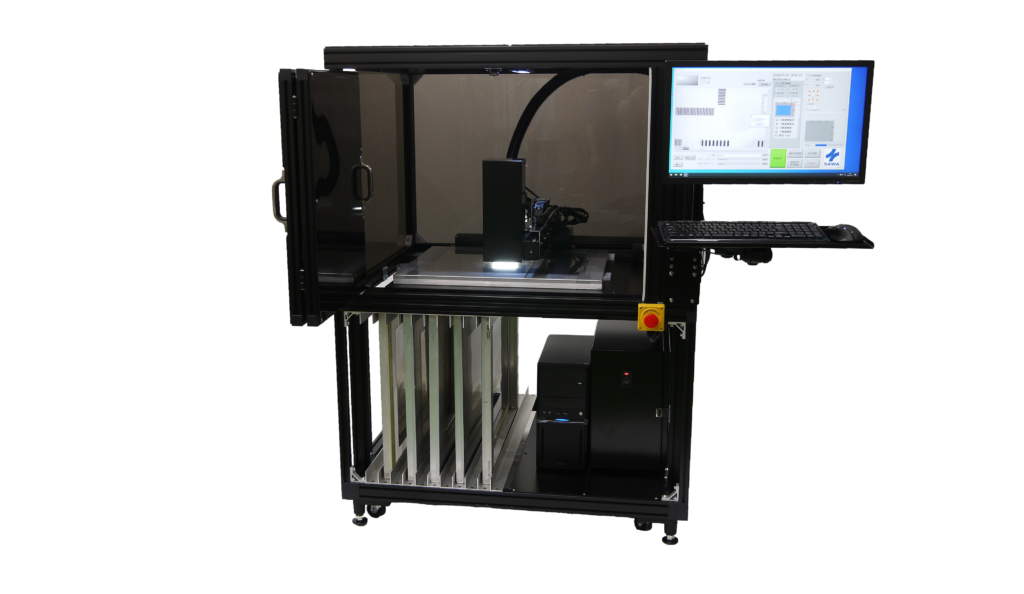

Full inspection of solder residue and dust deposit on metal stencil openings after the cleaning.
It reflects solder residues and dust deposit in red color.
![](http://sawa-corp-dev.demopage.jp/wp/wp-content/uploads/2023/04/拡大-926x1024.png)
All the openings in the specified area can be inspected.
NG point capture can be confirmed.
Trace for each mask is possible by registering the control number.
Pre-registration of Garber data is not required.
Available with 100V power supply.
![](http://sawa-corp-dev.demopage.jp/wp/wp-content/uploads/2023/04/画面-1024x512.png)
Measuring mask tension
Mask tension can be measured as an option.
メタルマスク開口検査装置【SCI-MCC】
Product No. | SCI-MCC |
---|---|
Outside dimension and Weight | W 1,160 D 1,520 H 1,500mm ±210kg(Dry Weight) |
Power Supply | Single-phase AC100V±10V50/60Hz300VA |
PC | OS : Windows10 Home 64bit CPU : core i7 MEM : 8GB HDD : SSD 500GB Monitor : 20inch Full HD Keyboard, Mouse (Wired) |
PC Gadget | Monitor : 20inch Full HD Keyboard, Mouse (Wired) |
Frame Size | M Size : L550 ×W600 / 650mm L Size:L736×W 736mm |
Inspeciton area | L: 400 x W: 400 mm(Max.) |
Processing Speed | Aperture Inspection : Within ±5 minutes Tension measurement : ±1 minute |
Specifications and appearance are subject to change without notice for improvement.
